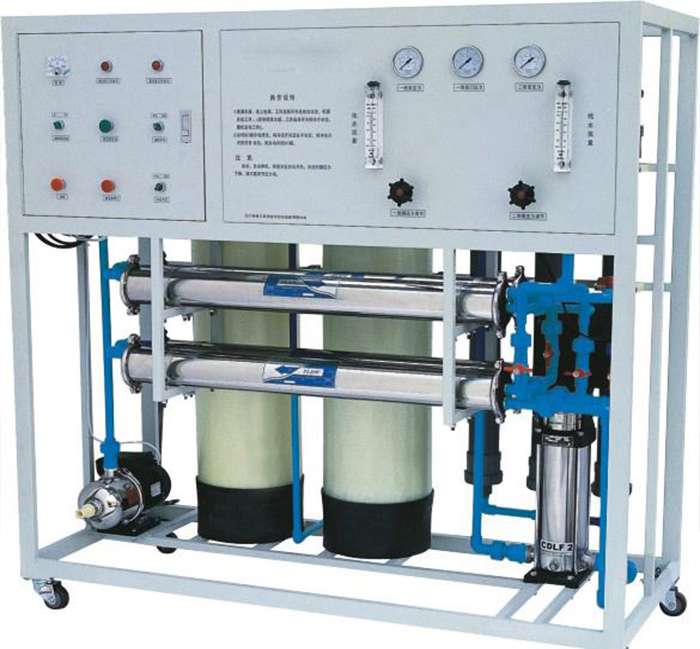

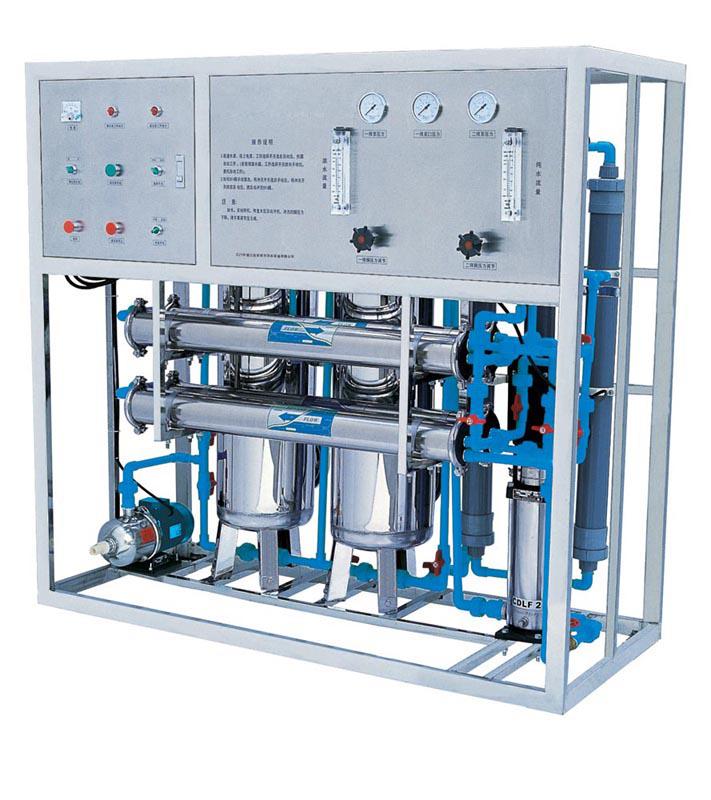

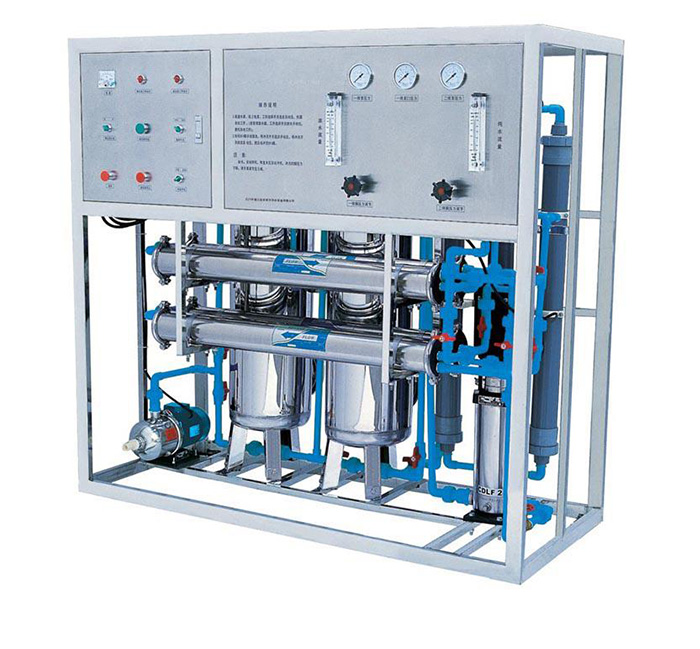

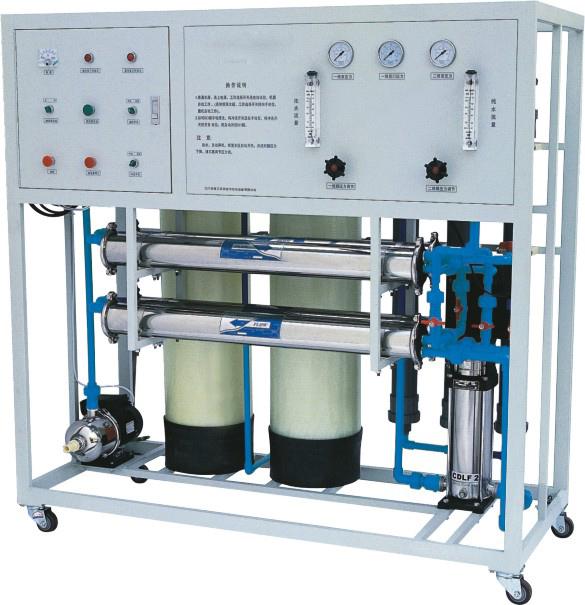

1000L/h RO system (FRP tank & SS304 tank)

A. System design basis

1. (1) Raw water quality ：(now design as TDS less than 2000ppm)

2. (1) produce water flow meter：1-5 M3/h    water temperature :25℃

 (2)Product water quality：WHO drinking water standard

B. Technology instruction：

1. It adopts current advanced RO system, the output water no kernel, pure.

2. This system adopts American technology RO membrane, the rate of removed salt is 98%, recovery 50%-75%, and shapes the special character. The whole system can get rid of bacterial virus, heavy metallic irons. Radioactive elements, organic pollutant each is 99.99%, 95%, 99%, 95%, the quality of water sweet, clean. Also get rid of poison harmful material in source water, such as four chlorination carbons, benzenese, hydrocarbon, agrochemical, and lead, mercury, chrome, etc. Other radioactive elements all be tested a limit the following.

C. About reverse osmosis

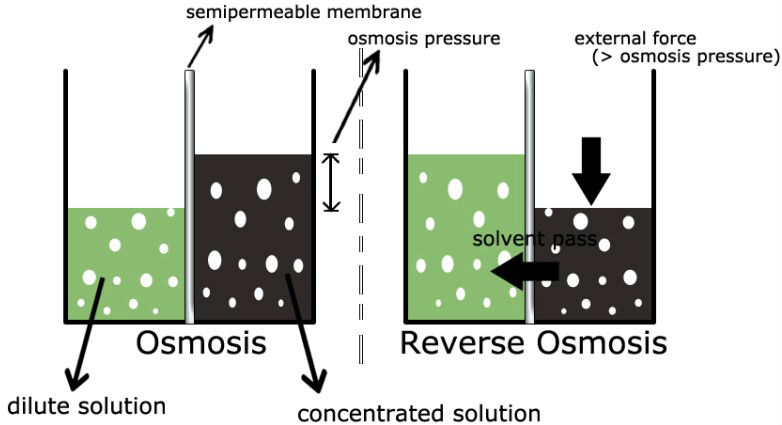

Principle of the reverse osmosis water treatment

We can place two kinds of solution (one is dilute and the other is concentrated, same volume) at two sides of a can, separated by a semi-permeable membrane. The solvent of dilute solution will flow into concentrated solution naturally and form a height between two kinds of solution keeping balanced, which called pressure difference.

 If we set a power bigger than pressure difference upon to concentrated solution, the solvent in it will flow to the dilute solution. This process called reverse osmosis, means the opposite flowing direction against natural flowing.

Application:

RO Reverse osmosis technology is widely used in electronic, electrical, pharmaceutical, chemical, food, beverage and water industries. Such as for drinking water, irrigating crops and plants, for food/beverage production line, etc.

Performance Feature:

 It adopts current advanced Reverse Osmosis Membrane system , the output water no kernel,pure.

 RO membranes auto wash and manual wash

 RO membranes manual wash with medicine

 Pure water high water level auto stop, low water level auto start

 Multi-phases pump protected without water

 Protected when no power, poor power, larger electrical current short circuit, creepage of electricity

Technical data:
