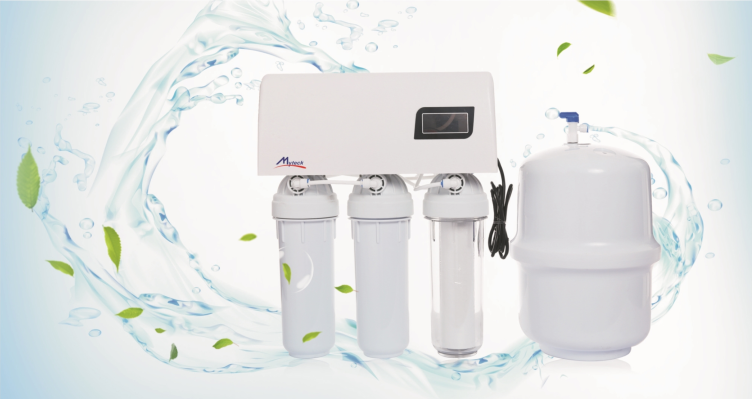

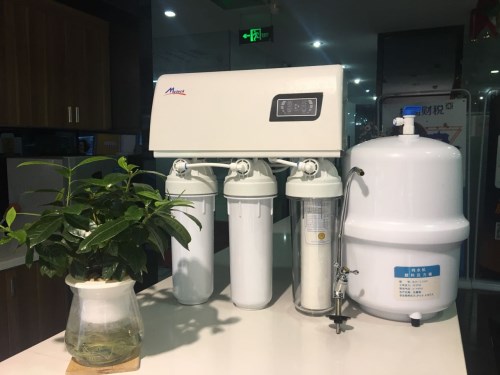

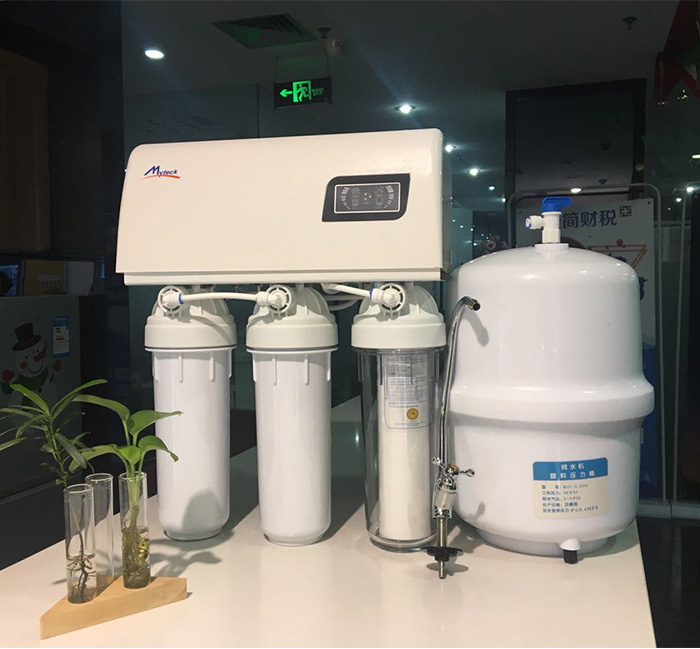

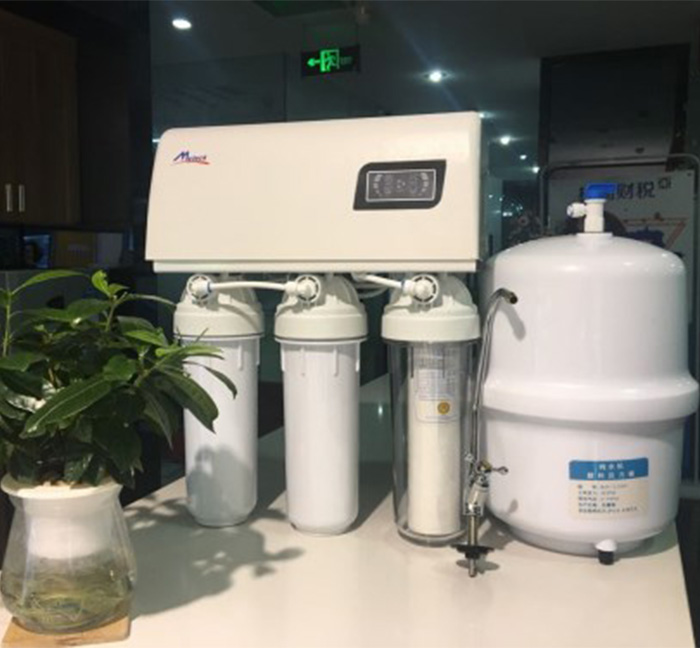

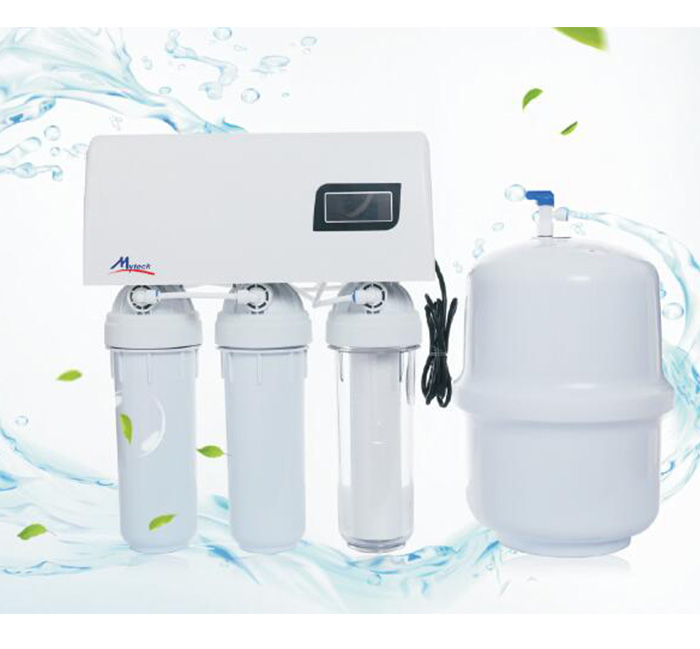

Big Family Health Star ----5-Stage RO Water Purifier
(big water output with 3.2 gallon tank, good for big family, direct drinking)
Myteck designs and manufactures RO pure water purifier with different appearance, with cover, LED or no cover no LED display. Except the offering of Myteck brand, customer's brandname can also be put on the product on condition that quantity is high at above 1000 pcs.
Big Family Health Star ----5-Stage RO Water Purifier
(big water output with 3.2 gallon tank, good for big family, direct drinking)
Features:
1. 5 stages super strong filtration, outstanding and stable water quality
2. Automatic running, automatic stop, and low pressure automatic stop for protection, automatic flushing at starting
3. Super quiet boosting pump, low noise, low vibration, long service life, running stable and reliable
4. Can be installed under sink or mounted on wall
5. Fashionable and nice white appearance
6. Water storage is more fresh: sealed vacuum design to keep away pollution source; inside equipped with air bag, which control water flow to ensure fresh water by outflow trigger
7. Water output is bigger with 75GPD RO membrane, daily water production can be 378.5L, can meet drinking demand of 5-10 people.
8. Centralized
9. Anti-scratching panel and casing to keep new for long
Product parameters:
Name | Big family health star | Detailed name | 5 stages RO water purifier |
Filtration precision: | 0.0001 micron | Applicable water source: | municipal tap water |
Filtration principle: | Reverse Osmosis (RO) | Gross weight: | 16kg |
Applicable water temperature: | 5-50℃ | Size: | 570*230*400mm |
Water feeding pressure: | 0.1-0.4Mpa
| weight | 11kg |
The pore size of RO membrane is 1/1,000,000 of a hair (filtration accuracy 0.0001 micron), generally human eyes cannot see it. Bacteria and germs are 5,000 times its size. Therefore, only water molecules and some healthful mineral ions can pass, and other impurities and metals will be discharged from waste water pipe. Seawater desalination and astronaut waste water recovery treatment use this method, so RO membrane is also called high-tech artificial kidney in vitro.

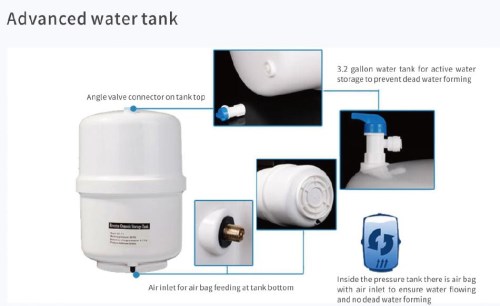

Water tank function:
1. RO purifier produces water very slowly with only 0.0001 micron filter pores. It has water storage tank which can ensure continuous water supply at power outage.
2. It is made of food grade safe material.
3. When water is full, it can stop automatically.
4. Inside the pressure tank there is air bag with air inlet to ensure water flowing and no dead water forming.

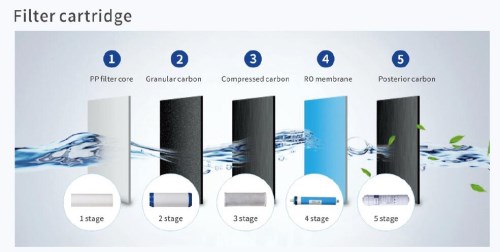

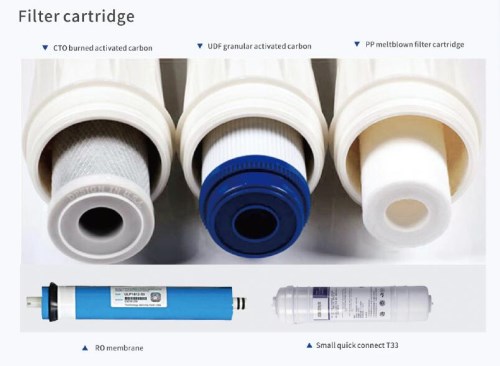

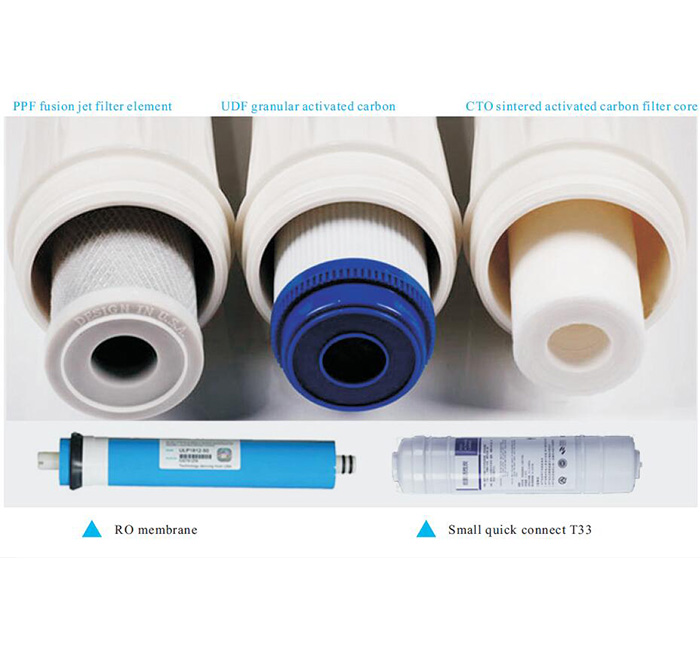

Filter cartridge | photo | function | Change period |
1 stage: PP meltblown filter cartridge | Remove sediment, iron rust, colloids and other big impurities | 3-6 months | |
2 stage: UDF granular activated carbon | Absorb residual chlorine and sterilization byproduct, taste and color, odor and other harmful matters | 6-12 months | |
3 stage: CTO burned activated carbon | Further absorb residual chlorine and sterilization byproduct, taste and color, odor and other harmful matters | 3-6 months | |
4 stage: RO membrane | 0.0001 micron precision, can completely remove all heavy metals and pollutants in water, output water is drinkable directly, more pure with good taste. No need to boil. 75GPD | 18-24 months | |
5 stage: Small quick connect T33 | Quality coconut shell activated carbon, mainly to inhibit bacteria to grow, improve water taste and remove odor | 9-12 months | |
Remark: 1. Filter cartridges change period is not in quality guarantee range. The suggested change period is based on national drinking water as source water and daily production is 10ml. 2. Filter cartridges change period is only estimation. It varies according to season, water quality, and water production amount. 3. If only filter cartridges are changed in time, you can get good water and reliable equipment running. | |||
Differences between RO and UF filtration:
Item | RO membrane (Reverse Osmosis) | UF membrane (Ultrafiltration) |
Filtration pore | 0.0001 micron | 0.01 micron |
Filtration effect | Long term no scale | With scale |
Change period | About 2-3 years | About 1-2 years |
Applicable source water | Any water source will do. Especially water with heavy metal or industrial pollution | Good water source, no heavy metal nor industrial pollution |
Waste water | Discharge waste water | No waste water |
pump | Need pump to give pressure | No need pump |
Direct drinking | yes | Yes but suggest to boil for some uses |
